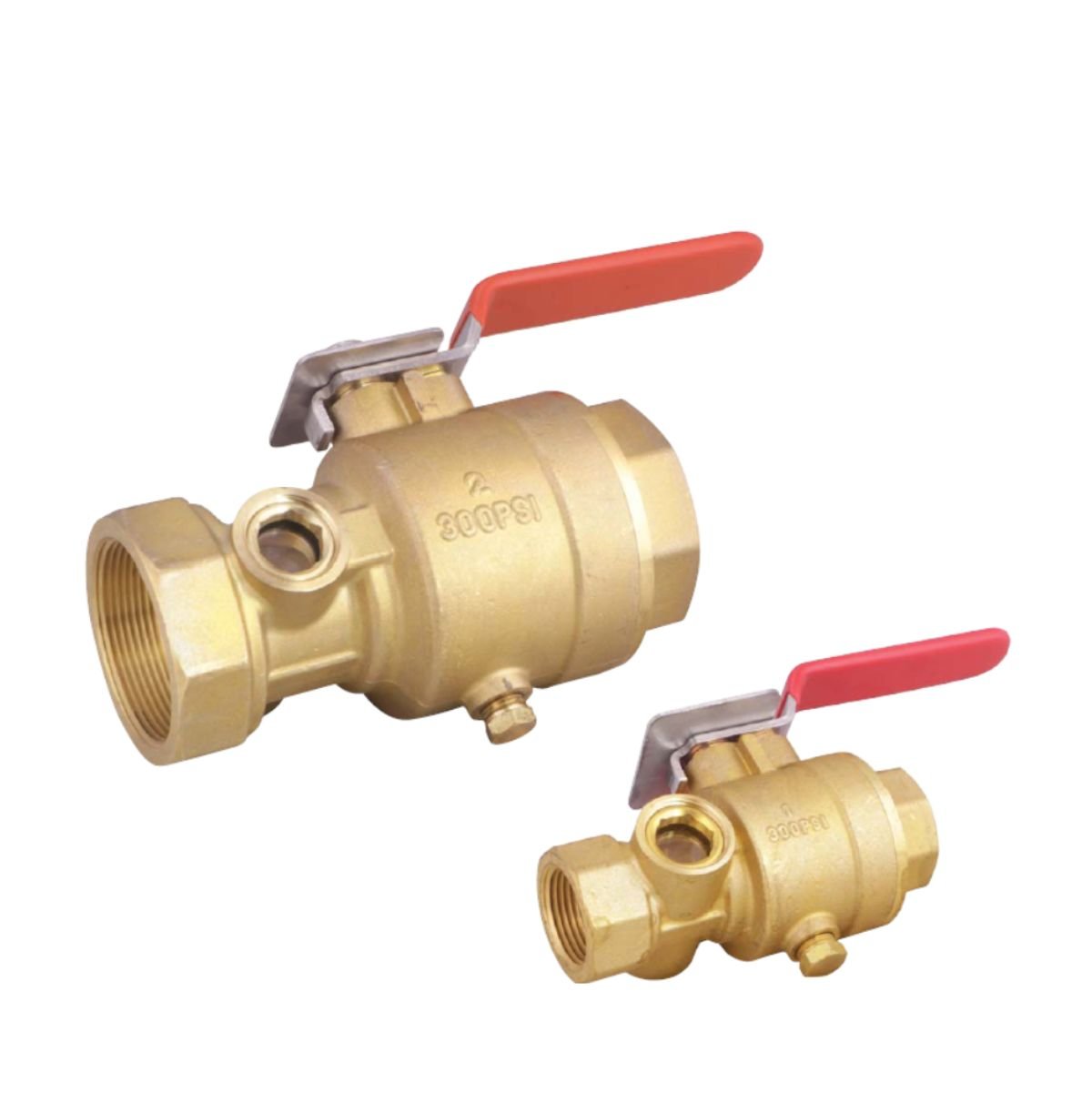

Test and Drain Valve

Datasheet – Orifice Port Dimensions

A/B (Orifice)	Orifice	Port	A	B	C	D	H
1”	½”	1.024”	5”	2.76”	5.16”	4.5”	1.65”
2”	½”	1.575”	6.57”	3.5”	6.34”	5.8”	2.28”
